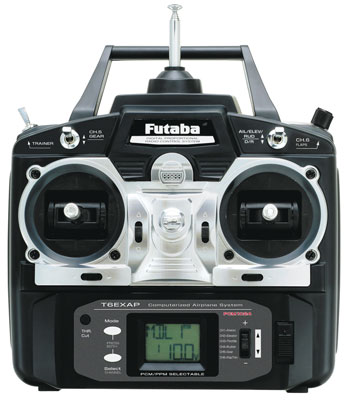

Futaba 6EXA Super 6 channel FM Computer Radio System
with the R127DF receiver and four S3004 standard size ball bearing servos.
This system is designed for the first time modeler
that prefers a computer style radio.
FEATURES: Six model memory with four character model
naming Standard programming features include all channel
servo reversing, End point adjustment (EPA) on all
channels, dual rates, exponential flaperon, V-tail,
elevon, and wing type selection Transmitter controls
include Throttle Cut Switch-stops engine when flipped
twice within one second, Trainer Switch-controls link
between instructor and student transmitters, Retract
Switch- controls operation of retractable landing gear
or other feature, Dual Rate Switch-reduces servo travel
and switches' exponential curve Flap dial control allows
fine tuning of flap servo to slow airplane when coming
in for a landing Adjustable flaperon rates Adjustable
stick length Trainer box capable (trainer cord sold
separately, see COMMENTS). One year limited warranty
INCLUDES: One Futaba 6EXA Super Computer Radio system
with: R127DF FM Dual Conversion Receiver. Four S3004
Ball bearing servos. One bag servo mounting harware
NR-4J Receiver battery. NT8F600B Transmitter battery
FBC-19B (4) Charger, SWH-13 Switch Harness, ANT-5
Transmitter Antenna, Servo Extension.
REQUIRES: Charging transmitter and receiver batteries
SPECS: Transmitter-6EX Operating System: 2-stick,
6-channel system Modulation: FM (PPM and PCM) Power
Supply: 9.6V NT8S600B NiCd battery or 12V alkaline
battery Current Drain: 250mA Receiver-R127DF Type: Dual
conversion Power requirement: 4.8V or 6V NiCd battery
Current drain: 14mA @ 4.8V Length: 2.52" (64mm) Width:
1.39" (35.3mm) Height: 0.82" (20.8mm) Weight: 1.5oz
(42.5g) Servos- (4) S3004 Servo type: (4) S3004 standard
ball bearing servos Control system: Pulse width control,
1.52ms neutral Power requirement 4.8V (from receiver)
Output torque: 44.4oz/in (3.2kg/cm) Operating speed:
0.23 sec@60 degrees Length: 1.59" (40.4mm) Width: 0.78"
(19.8mm) Height: 1.41" (36mm) |
