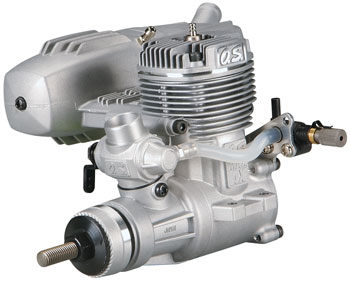

This is the O.S. Max .46AX ABL BB Model Airplane Engine with Muffler.
Ideally suited to a variety of R/C aircraft including trainer, sports
aerobatic, and scale types.
FEATURES: Redesigned remote needle holder is separate bracket,
not part of backplate Advanced Bi-Metallic Liner. This process uses
a double layer of plating material rather than one thicker layer.
This helps the metal to bond to the cylinder and is more durable.
Also, the plating process is more consistent, resulting in a more
precise fit between piston and sleeve for better compression, longer
life. Side exhaust Newly designed sport muffler with squared-off
shape 40G carburetor Ball bearing-supported crankshaft Two-year
limited warranty
INCLUDES: One O.S. Max .46AX ABL BB model airplane engine with
muffler, A3 glow plug, 2-1/4" (57mm) section of tubing for remote
needle, two 3mm x 35mm cap head muffler screws, warranty sheet,
decal sheet, and illustrated instruction manual
REQUIRES: Fuel containing 5%-20% nitromethane with at least 16%
lubricant Most of the fuels we carry meet or exceed the lubricant
content required for optimum performance and maximum engine life. In
the past, the conventional lubricant content used in fuel was 18%.
But with new advanced technologies, fuels like Red Alert and
O'Donnell for example, have a better quality of lubricants even
though the percentages of lubricant content are lower. These
high-tech lubricants provide exceptional cooling and protection.
SPECS: Displacement: 0.455 cu in (7.45cc) Bore: 0.866" (22mm)
Stroke: 0.772" (19.6mm) Practical RPM: 2000-17000 Power Output:
1.65ps/16000 rpm Weight: 13.2oz (375g) without muffler Weight:
17.2oz (489g) with muffler Recommended Propellers: 10.5x6, 11x6-8,
12x6-7, use 10x6 for break-in Crankshaft Size: 1/4-28
Distance from remote needle to end of crankshaft: 4.7" (119.4mm)
Distance from center of engine to drive hub: 2.4" (60.4mm) Distance
from center of engine to end of crankshaft: 3.4" (87.6mm)
Distance/crankshaft center to muffler exhaust outlet: 3.9" (100.5mm)
Height from crankcase bottom to top of cylinder head: 3.3" (85.2mm)
Height/crankshaft center to top of cylinder head: 2.6" (67.4mm)
Width including mounting ears: 2" (51mm) Width not including
mounting ears: 1.4" (35mm) Width between mounting holes same side:
0.69" (17.5mm) Width between mounting holes opposite side: 1.7"
(44mm) Diameter of muffler body: 1.5" (38.1mm) Angle of muffler in
relation to engine: 4° |
