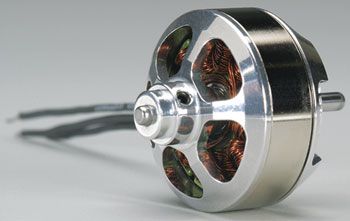

Ultrafly Brushless B/06/15 Outrunner Motor.
FEATURES: Designed for 3D models and park
flyers Precision CNC tooling with hi-quality material allows
motor to operate at higher RPM without vibrations. Unique
patented design forces the magnet to hold its position when
the propellor stops at high RPM Ultrafly brushless motors
have a one year limited warranty from the date of purchase.
The warranty does not cover over-current, over temperature,
or crash damage. Improper use of the motor can be determined
in service and will not be covered under warranty.
INCLUDES: One brushless, sensorless motor
REQUIRES: Brushless, sensorless ESC Planes
Weight Prop size sports 700g,24.5oz 7 inch hi-wing 900g,32oz
7-8 inch Speedy 600g,21oz 5-7 inch
SPECS: Shaft Length: 0.45" (11.5mm) Shaft
Diameter: 1/8" (3.17mm) Motor Diameter: 1.3" (32.5mm) Motor
Length: 1.6" (41mm) Distance of mounting holes:16mm & 19mm
Mounting screw 3x3mm Maximum input power: 180 watt Maximum
operating temperature: 100C Magnet: Neodynium (150C
temperature tolerance) Max Amp: 15A RPM/Volt: 1450 Weight:
1.48oz (42g)
|
