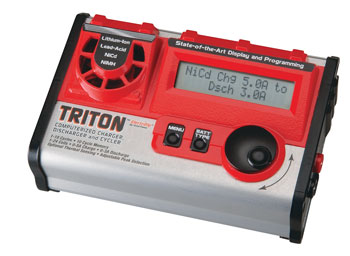

This is the Electrifly Triton DC Computerized, Charger, Discharger, and
Cycler from Great Planes.
FEATURES: Handles 1-24 cell NiCd or NiMH cells, 1-4 Lithium-ion
or Lithium- polymer cells (Li-ion/Li-po) or 6, 12, and 24V lead-acid
batteries (Pb). 24V lead acid batteries Great for small Park Flyers,
large scale electrics, transmitter and receiver batteries, field
batteries . . . even R/C cars! Up to 10 different battery
configurations are storable for instant, easy recall and charger set
up. Features adjustable peak detection sensitivity, and recalls data
for up to 10 full cycles. Top-off charge feature fully charges NiMHs
without overheating. The scrolling dial offers simplicity and
sophistication in its programming. Warning messages for improper
input voltage, poor connections, unsuitable battery condition, and
reverse polarity on output. Safety features include cool-off time
delay, maximum NiMH charge input, fast charge safety timer, current
overload, and reverse polarity protection. Optional battery
temperature monitoring allows modelers to safely and accurately
charge heat-sensitive Lithium-ion, Lithium-polymer, and NiMH
batteries. Built-in cooling fan for better charge efficiency and
longer charger life. One year warranty.
INCLUDES: One Triton DC Computerized Peak Charger.
REQUIRES: 12V DC power from a power supply or automotive battery.
Hobbico 12V Power Supply (HCAP0250) for 1-18 cells Rivergate 15A DC
Bulldog Power Supply (RHCP2015) for more than 18 cells _ Transmitter
& Receiver charge plugs w/banana clips. (HCAP0108).
SPEC: Input Voltage: 10-15.0V DC Battery Types, # cells: 1-24
Nickel-Cadmium cells (1.2- 28.0V NiCd) 1-24 Nickel-Metal Hydride
cells (1.2- 28.0V NiMH) 1-4 Lithium-ion or Lithium-polymer cells
(3.6- 14.8V Li-ion/Li-po) 3, 6, 12 Lead-Acid cells (6, 12, 24V Pb)
Adjustable Charge Current: 0.1-5.0A (2.5A maximum for Li-ion/Li-po).
Fast Charge Current: 0.1 -5.0A linear (2.5A maximum for Li-ion) (1A
for Li-po). Fast Charge Termination: "zero deltaV" peak detection
with adjustable sensitivity for NiCd and NiMH batteries. "constant
current/constant voltage" for Pb & Li-ion Li-po (cc/cv) optional
fast charge thermal cutoff (thermal probe required) TRICKLE Charge
Current: 0-250mA (n/a for Pb and Li-ion/Li-po), automatically set by
Triton (not user adjustable) based on the level of the peak charge
current. Discharge Current: 0.1-3.0A Discharge Cutoff Voltage:
0.5-1.16V per cell NiCd & NiMH (0.8V j cell fixed during cycle) Pb
fixed at 1.8V per cell Li-ion/Li-Po fixed at 2.8V per cell Cycle
Count: one to ten cycles (n/a for Pb and Li-ion/Li-Po) Battery
Memories: ten battery parameter storage memories Display Type:
2-line, 16 character LCD Output Connectors: banana jacks Input
Connectors: Alligator clips Case Size: 6.2"x 4.0"x 2.0" (157 x 102 x
51mm) Weight: 16.4 oz. (466g)
COMMENTS: To achieve the Triton's maximum potential, the power
supply must be capable of delivering at least 13 amps of current
while maintaining 12V DC.
Q: When should my fan switch ON? A: The temperature-controlled
fan does not turn ON until needed, which occurs in the following
circumstances: 1. During discharge 2. During charge: a. if the temp
of the charger exceeds 50 degrees C (122 deg. Fahr) b. if the charge
output power is over 30W c. if the charge current is over 2.5A d. if
charging 1 cell, or packs containing 2 or 3 cells 3. During charge
or discharge, if the temp of the charger itself exceeds 100 deg C
the charger will stop all charge or discharge functions until the
temp drops below 70 degrees C. The fan should continue to run until
the temp drops below 45 degrees C. (The manual covers this). |
