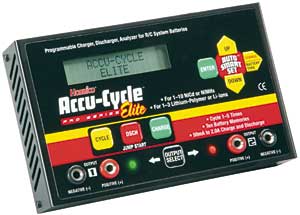

Hobbico AC/DC Accu-Cycle Elite Battery Cycler.
   Charges, discharges and cycles NiCd, NiMH and Lithium based battery packs.
         Perfect for radio batteries, lithium park flyer batteries,
                    and single cell glow starter cells.

*** 2 Year Warranty ***

FEATURES: Charges and discharges 1-3 cell Lithium-Ion and Lithium-Polymer packs Peak charges, discharges and cycles 1-10 cell NiCd or NiMH packs Auto Smart Set automatically calculates safety time-out, charge rate, TRICKLE rate and discharge voltage cut-off based on battery type, capacity, and voltage Custom charging and discharging routines can be created for up to packs and stored in memory Prevents overcharging with peak detection for NiCd and NiMH packs and cc/cv detection for Li-based packs On-screen messages appear on large easy to see two line 16-character LCD screen, messages feature fewer abbreviations, better explanations and units of measurement with every number AC/DC compatible for at home or on the field recharging Optional Temperature Sensor (HCAP0281) functions with all battery types Two year warranty

INCLUDES: One Accu-cycle Elite cycler One AC adapter/power supply (NOT AVAILABLE SEPARATELY) Two (red & black) alligator clips w/banana jacks One instruction booklet One Main/Memory menu sheet One NiCD, NiMH, and Lithium menu sheet One Charge/Discharge chart w/blank memory chart

SPECS: Input Voltage: 11-14.5VDC AC Power Supply: 110VAC 60Hz input, 14.5VDC 2.5A output Number of Output Ports: two For BOTH Outputs: Battery Types: Nickel-Cadmium (NiCd), Nickel-Metal Hydride (NiMH) Lithium-Polymer (Li-Po), Lithium-Ion (Li-Ion) Number Cells: 1-10 NiCd or NiMH (1.2-12.0V), 1-3 Li-Po or Li-Ion (3.6-11.1 V) Fast Charge Current: * 50-2000mA Fast Charge Termination: NiCd/MH -"negative deltaV'" peak detection, Li-Po's -"constant-current/constant-voltage" (4.20V/cell max.) Li-Ion's -"constant-current/constant-voltage" (4.l0V/cell max.) Peak Detection Sensitivity: 3-15mV per cell adjustable Fast Chg Safety Timer: * automatically calculated Trickle Charge Current: * 0-200mA Peak Detection Delay: 3 minutes Discharge Current: 50-2000mA Discharge Cutoff Voltage: * 0.8-1.2V per cell adjustable for NiCd & NiMH 3.0V per cell fixed for Li-Ion and Li-Po Cycle Count: 1 to 5 (NiCd and NiMH only) Cycle Delay- chg/dsch: 10 minutes Status Indicators: two tri -color LEDs (red/amber/green) Optional Temp. Cutoff: ** 60-130°F (15-54°C) Output Connectors: banana jacks Battery Memories: ten Display Type: 2-line, 16 character LCD Case Size: 3.7 x 6.1 x 1.2 in. (94 x 30.5 x 155mm) Weight: 13.23 oz. (375g, not including power supply) Length: 6.1" (155mm) Width: 3.7" (94mm) Height: 1.2" (30.5mm)

* Auto Smart Set Feature, can be manually overridden except for fast charge safety timer ** Requires optional Temperature Sensor HCAP0281

CInput: 110V 60Hz AC 16V DC, 3A 11-14.5DC, w/110V 60Hz switching AC supply Batt/Chemistry Types: NiCd, NiMH NiCd only NiCd, NiMH, Li-Po, Li-Ion

Battery Capacity Range: 350-1800mAh 250-2000mAh 50-5000 mAh

RX Fast Charge Rates: 25, 50, 125mA 500 and 1000mA 50-2000mA calculated w/Auto Smart Set TX Fast Charge Rates: 50, 125mA 500 and 1000mA 50-2000mA calculated w/Auto Smart Set TX Discharge Rates: 250, 500mAh 250, 750mA 50-2000mA

Rx Discharge Rates: 250, 500mAh 250, 750mA 50-2000mA
