Tests 4, 5 & 8 cell R/C batteries in a no-load or a simulated R/C load setting.

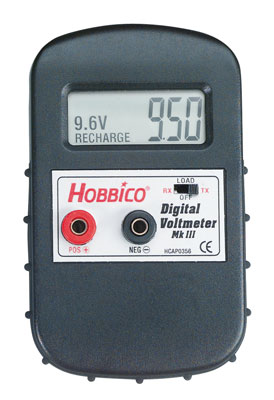

FEATURES: Custom designed LCD shows voltage in clear 1/2" numerals, plus customized characters to easily determine the meter setting and condition of the battery under test. The LCD not only displays the voltage, but the voltage mode, "OK" and "RECHARGE". Test 5 cell packs, in addition to 4- and 8-cell batteries. Includes a common 9V internal battery, located inside an easy-access compartment. Built-in simulated R/C load of 250mA for each setting. Includes two input controls: a small pushbutton on the left side of the case, and a 3-position slide switch on the face of the meter. Switch load off and use it as a true digital voltmeter. Measures DC voltage up to 19.99V, making it versatile enough for any DC battery - transmitter/receiver packs, starter batteries, and glow starter batteries. A 10 minute auto-timer shuts the unit OFF automatically if left ON by accident, to help prevent unwanted battery drain. Rubber grip for no-slip handling. Color coded banana jacks, compatible with most common test leads. One year limited warranty.

INCLUDES: One Digital Voltmeter MKIII with 9V battery pre-installed One Instruction Sheet

SPECS: Supply voltage: 9V DC Input test settings under load: 4.80V DC (4 cell battery) 6.00V DC (5 cell battery) 9.60V DC (8 cell battery) Optional load current: 250mA each setting Maximum voltage measurement: 19.99V DC Length: 4.5" (113mm) Width: 2.75" (67mm) Height: 1.0" (27mm) Weight: 4.7 oz (136g) Auto-off timer: shuts off after 10 minutes Low battery indicator: Battery symbol in LCD window

REQUIRES: Test or charge leads with banana plugs.
