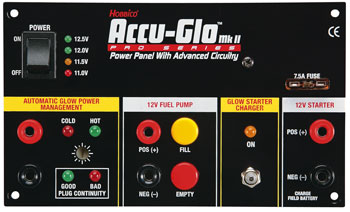

Hobbico Accu-Glo II Power Panel.
This panel powers starters, chargers, fuel pumps, and
glow starters and monitors condition of glow plugs.
This power panel comes with a hard plastic
case or can be mounted to any field box with a standard
sized cutout for a power panel.
FEATURES: Fuel pump switch from original
Accu-Glo was replaced by separate color-coded push-buttons
for "Fill" and "Empty" press once to start, again to stop
Four LEDs, 11.0V, 11.5V, 12.0V, and 12.5V indicate field
battery condition-an improvement from one light that glowed
either green or red on original version Glow Starter Charger
keeps unit fully charged at a constant 300-400mA rate
Automatic Glow Power Management section tells when glow plug
is fully charged and if plug continuity is good Adjustment
dial allows automatic glow heat customization to the model;
once set the unit maintains proper heat regardless of glow
plug's condition Two year limited warranty
INCLUDES: One Hobbico Accu-Glo II Power
Panel with two alligator clips, two black and two red banana
plugs, two plastic plug covers, four 3mm x 10mm self tapping
screws to mount panel to field box
SPECS: Input Voltage: 11-13V DC Input
Voltage Indicators: Four LEDs Starter Jacks-Output Voltage:
12V DC Fuel Pump Controls: yellow "FILL" pushbutton; red
"EMPTY" pushbutton Glow Heat Power Circuit: Automatic heat
adjustment Glow Heat Status Indicators: "HOT" and "COLD"
LEDs Glow Heat Continuity Indicators: "GOOD and "BAD" LEDs
Glow Starter Charger Current: 300-400mA constant current
(not timed) Glow Starter Output Jack: Glow driver mounting
lug with LED Fuse: 7.5A spade type Weight: 8.3oz (235g)
Dimensions: 6" x 3.7" (152 x 94mm)
REQUIRES: 12V battery |
