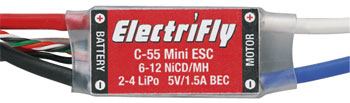

C-55 Mini High Frequency Electronic Speed Control w/BEC.
  For aircraft requiring high current with 500 or 600 size brushed motors
                             requiring 50A or less.

FEATURES: Compact size to minimize weight and simplify installation Programmable battery types Automatic temperature protection reduces max throttle to 70% when max temperature is reached Uses "Safe-Start" system to prevent accidental motor starts by disabling the motor circuitry until the throttle stick is moved to full throttle, then to the OFF position Factory installed radio, motor and battery connectors Fully proportional forward with brake Battery Eliminator Circuitry provides sufficient current for the receiver and three standard servos. The motor battery powers the receiver and servos, then when voltage is reduced to the appropriate voltage, the low voltage cut-off circuitry stops the motor while continuing to supply power to the receiver and servos. Solid-state current overload limiter Built-in thermal shutdown protection reduces throttle to 70% if the transistors overheat Reverse-polarity protection High Frequency to optimize battery run-time and cool operation ON/OFF radio switch and set-up LED light 180 day limited warranty

INCLUDES: One C-55 Mini Electronic Speed Control with universal receiver plug installed, installed motor wires with 4mm gold plated female bullet connectors, Deans Ultra male battery connector and an ON/OFF switch Three ceramic capacitors to reduce motor noise. One 2.75" piece of shrink tubing. One instruction sheet.

REQUIRES: Attaching to motor and setting up speed control Battery pack Plug universal plug into the throttle channel on the receiver

SPECS: Length: 1.42" (36mm) Width: .71" (18mm) Height: .43" (11mm) Weight: 1.22 ounce (35g) with wires Input: 6-12 NiCd/NiMH cells; 2-4 Li-Po cells Max Rated Current: 50A continuous BEC Voltage: 5V/1.5A Low Voltage Cutoff: 0.80V per cell for NiCd/NiMH, 2.75V per cell for Li-Po Connectors: Universal radio connector, Deans Ultra male connector, 4mm gold plated female bullet connectors Switching Frequency: 1.3kHz Motor Size: Speed 500 and 600 brushed only
