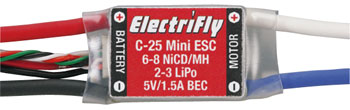

Mini High Frequency Electronic Speed Control w/BEC.
For small to medium size electric aircraft with 400 size and
some 500 and 600 size brushed motors requiring 25A or less.
FEATURES: Compact size to minimize weight
and simplify installation Programmable battery types
Programmable brake Pushbutton, twin LEDs and audible tones
for easy set-up. On/Off switch and LEDs on an externally
mountable lead. Automatic temperature protection reduces
max. throttle to 70% when max. temperature is reached. Very
smooth throttle response Uses "Safe-Start" system to prevent
accidental motor starts by disabling the motor circuitry
until the throttle stick is moved to full throttle, then to
the OFF position Factory installed radio, motor and battery
connectors Fully proportional forward only with programmable
brake Battery Eliminator Circuitry provides sufficient
current for the receiver and two standard servos. The motor
battery powers the receiver and servos, then when voltage is
reduced to the appropiate voltage, the low voltage cut-off
circuitry stops the motor while continuing to supply power
to the receiver and servos High frequency to optimize
battery run-time and cool operation. Pushbutton twin LEDs
and audible tones for easy set-up 180 day limited warranty
INCLUDES: One C-25 Mini Electronic Speed
Control with Deans ultra male connector for battery, 3.5mm
gold plated female bullet motor connectors and universal
receiver connector One instruction sheet.
REQUIRES: Attaching to motor and setting
up speed control Battery pack Plug universal plug into the
throttle channel on the receiver
SPECS: Length: .98" (25mm) Height .43"
(11mm) Width: .71" (18mm) Weight: 0.85 ounce (24.1g) with
wires Input: 6-10 NiCd/NiMH cells; 2-3 Li-Po cells Max Rated
Current: 25A continuous BEC Voltage: 5V/1.5A Low Voltage
Cutoff: 0.80V per cell for NiCd/NiMH, 2.75V per cell for
Li-Po Connectors: Receiver lead- Universal Battery lead-
Deans Ultra male Motor Connector- 3.5mm gold plated female
bullet connectors Switching Frequency: 1.3kHz Motor Size:
400 (and some 500 & 600 size) brushed only
COMMENTS: Will handle 2 standard servos.
Do NOT use with brushless motors. |
