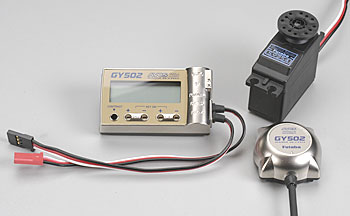

Futaba GY502 Helicopter Gyro with S9254 Digital Servo
FEATURES: AVCS (Angular Vector Control System) gyro developed for
use with .60 size helicopters SMM (Silicone Micro Machine) technology
is the integration of mechanical elements, sensors, actuators and
electronics all brought together on a common substrate chip. This
hobby industry first results in a gyro sensor with an unprecedented
level of functionality, reliability, and sophistication. Rudder gain
control Servo frame rate Adjustable gain from your transmitter (two
position gain) (0-100% remote gain adjustment) Rudder stick delay Gyro
reverse Complete w/Futaba J connectors Long leads allow mounting in
virtually any position Low back aerofoam case improves sensor
vibration resistance and neutral characteristics 270Hz high-speed
operation Transmitter controlled switching to AVCS S9254 digital heli
servo features coreless motor, digitally enhanced microprocessor, and
is dust and moisture resistant
INCLUDES: One gyro, sensor, one shield plate, three pieces sensor
tape, S9254 servo, one 1.8" (45mm) diameter servo wheel, one 0.83"
(21mm) diameter servo wheel, one 1.5" (38.5mm) 4-point servo horn, one
1.25" (32mm) 6-point servo horn, adjustment screwdriver, instruction
manual
REQUIRES: Initializing, installing in model and adjusting
SPECS: Gyro; Voltage Range: 3.8-6V DC Consumption: 70mA (@5.0V,
including Amp) Weight: 34g (amp), 25g (sensor) Temperature Range:
14-140 F (-10 - +50 C) Operating Humidity Range: 10 to 90% RH (no
Condensation) Amplifier Length: 2.2" (57mm) Sensor Length: 1.3" (34mm)
Width: 1.25" (32mm) Width: 1.3" (34mm) Height: 0.59" (15mm) Height:
0.65" (16.5mm) Weight: 1.2oz (34g) Weight: 0.88" (25g)
Servo; Speed: 0.06 sec/60 deg @ 4.8V Torque: 47.2 oz/in @ 4.8V
Length: 1.6" (41mm) Width: .8" (20mm) Height: 1.4" (36mm) Weigth: 1.7
oz (49g) Power Supply: 4.8V
(NOT recommended using 6V) |
