This is a high performance, compact and lightweight
AVCS) Angular Vector Control System gyro developed for model helicopters.
Because the sensor and control circuit are integrated, it is simple to install.
FEATURES: AVCS System: Since the rudder trim changes (caused by
wind and other meteorological changes) the front, rear, and other heli
attitudes change and are automatically canceled; tail (rudder)
operation is easy, making it perfect for 3D flight. (also known as
heading hold gyro) SMM Gyro Sensor: Use of this newly developed
technology virtually eliminates rudder trim changes during flight (see
COMMENTS). Digital Servo Compatible (DS Mode): DS mode makes it
compatible with Futaba digital servos. This maximizes the high-speed
response performance of the digital servo. Included high-speed S9254
digital servo boasts 47 oz/in torque and a speed of .06 seconds @ 60°
Remote Gain Function and Mode Switching Function Remote: Gain function
allows sensitivity switching from the transmitter and mode switching
function allows AVCS/normal gyro mode switching. Integrated, compact
and lightweight design made possible by high density mounting
technology. Conductive Resin Case: This case improves EMC
(Electrostatic and electromagnetic interference) resistance. One year
warranty

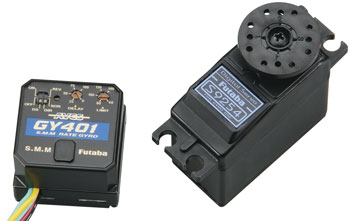

INCLUDES: One GY401 gyro One S9254 digital servo, One 0.81"
(20.5mm) round servo horn, one 1.8" (45mm) round servo horn one 1.25"
(32mm) 6 point servo horn, one 1.5" (39mm) 4 point horn, mounting
hardware One mini plastic adjustment screwdriver Three mounting pads
One instruction sheet
SPECS: GY401 Gyro- S9254 Digital Servo Length: 1.1" (27mm) 1.6"
(40mm) Width: 1.1" (27mm) 0.79" (20mm) Height: 0.79" (20mm) 1.4"
(36.2mm) not including horn Weight: 0.95oz (27g) 1.8oz (50g) Torque:
47 oz/in Speed: .06 sec @60°
COMMENTS: Can be used in helicopters and airplanes (Due to 0-100%
Gain Adjust). The new SMM (Silicone Micro Machine) technology is the
integration of mechanical elements, sensors, actuators and electronics
all brought together on a common substrate chip. This hobby industry
first, results in a gyro sensor with an unprecedented level of
functionality, reliability, and sophistication.
This will not work with JR digital servos. These have a different
pulse. |
