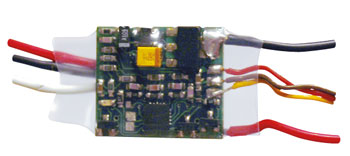

Castle Creations Phoenix-25 amp Brushless Sensor less ESC.
This speed control is specifically designed for brushless application.
FEATURES: Extremely low resistance (.013 ohms) High rate (11 KHz)
switching Up to 25 amps continuous current with proper air flow, 35
amp surge Five to eight cells with four micro servos Up to ten cells
with three micro servos Sixteen cells max with BEC disabled Dynamic
braking ensures folding props fold properly BEC (1.5A) provides power
to receiver and servos-eliminates need for a separate receiver battery
User programmable features: Low voltage cutoff Over-current protection
Brake type Throttle range Timing advance Cutoff type Soft start ramp
up Runs motor in forward or reverse Auto motor in cutoff with reset
Safe power on arming prgram ensures motor will not accidentally turn
on Low torque soft start prevents damage to fragile gearboxes Auto
shut down when signal is lost or radio interference becomes severe
INCLUDES: Instruction sheets Phoenix 25 ESC
SPECS: Length: 1.5" (37mm) Width: 1" (25mm) Height: 3/16" thick
(5mm) Wire Length: 4" (102mm) motor ends 5.5" (140mm) battery end 7"
(178mm) servo wire with universal connecter |
