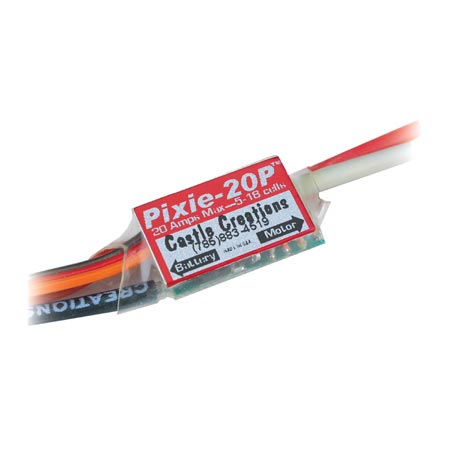

Pixie 20-P Sub Micro Motor Control

by Castle Creations
Stk # CSEP20P

Features

	Battery Eliminator Circuit (BEC): eliminates receiver battery
	Safe "Power On"
	Low torque "Soft Start": protects gear boxes and belt drives from shock
	Simple setup: no complicated switches or wiring
	Tough surface mount construction
	Smooth reverse exponential throttle
	Audible Arming Signal
	Self-calibrating endpoints: maximizes usable stick travel
	Auto Motor cut-off with reset
	Auto shut-down when signal is lost
	Microprocessor Controlled

Specifications

Reverse: No

Brake: No

Continuous Maximum Current: 20 amps

Output Connector Types: Universal

Dimensions: 0.7 x 0.4 in

Weight: 0.3 oz

Full On Resistance: 0.0026 Ohms

Cells w/BEC: 5-10

Cells w/o BEC: 5-18

Auto Cutoff: Programmable

Featuring a continuous current rating of 20 amps, the Pixie-20P is remarkably small and light. Just 0.4" x 0.7" (smaller than most "indoor" controls) the Pixie-20P is small and light enough to be used in the lightest indoor models, but has the current capability to handle hot Speed-480 pylon racers. The Pixie-20P features a full 1.25A BEC for use with up to three servos. Now with programmable cut-off, the Pixie-20P can be set to get full use of your pack. Five cut-off choices allow the Pixie to be used with Lithium cells.
