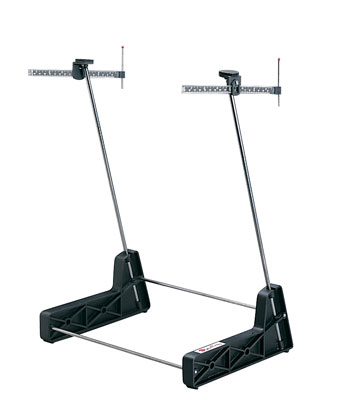

This is the Great Planes C.G. Machine Precision Aircraft Balancer.
FEATURES: Accurately balances your plane and set the center of
gravity for maximun flight performance Works for any type of planes
kits, ARFs, high wings, low wings with or without struts regardless
of size or wingspan up to 40 pounds Level vial for accuracy
INCLUDES: Two Base black plastic (NYLON141) Two Socket caps black
plastic (NYLON138) Two Rule holder black plastic (NYLON139) Two Rule
end cap black plastic (NYLON140) One Level vial (LEVEL01) One 1/2" x
3" clear plastic strip (LEVEL02) Two Leading edge pointers (.074" x
2 1/2" wire) (WBNT262) Two 2-56 threaded ball stud (SCRW072)
One 1"x1" double sided tape (FTAP001) Two 1" self-stick round
foam pad (FOAM002) Two #4 x 3/8" sheet metal screw (SCRW043) One
Rule set (left and right, clear plastic NYLON142) Two 1/4" x 16"
upright metal rod (ROD003) Two 3/16" x12" base metal rod (WIRES07)
One C.G. Machine sticker (STKER46) One instructions (BALP01)
REQUIRES: Medium or thick CA glue, hobby knife, phillips
screwdriver, small metal file, threadlocking compound, 600 & 220
grit sandpaper, small 90 degree triangle, tissue or paper towel and
rubbing alcohol or glass cleaner
COMMENTS: Available accessories to balance the airplane: GPMQ4485
Stick-on lead weights GPMQ4640 1/4-28 Brass spinner nut 2.5 ounce
GPMQ4645 1 ounce spinner weight GPMQ4646 2 ounce spinner weight If
the holes are slightly large around the rods, simply pinch them
tight around the rods with a pair of pliers. |
